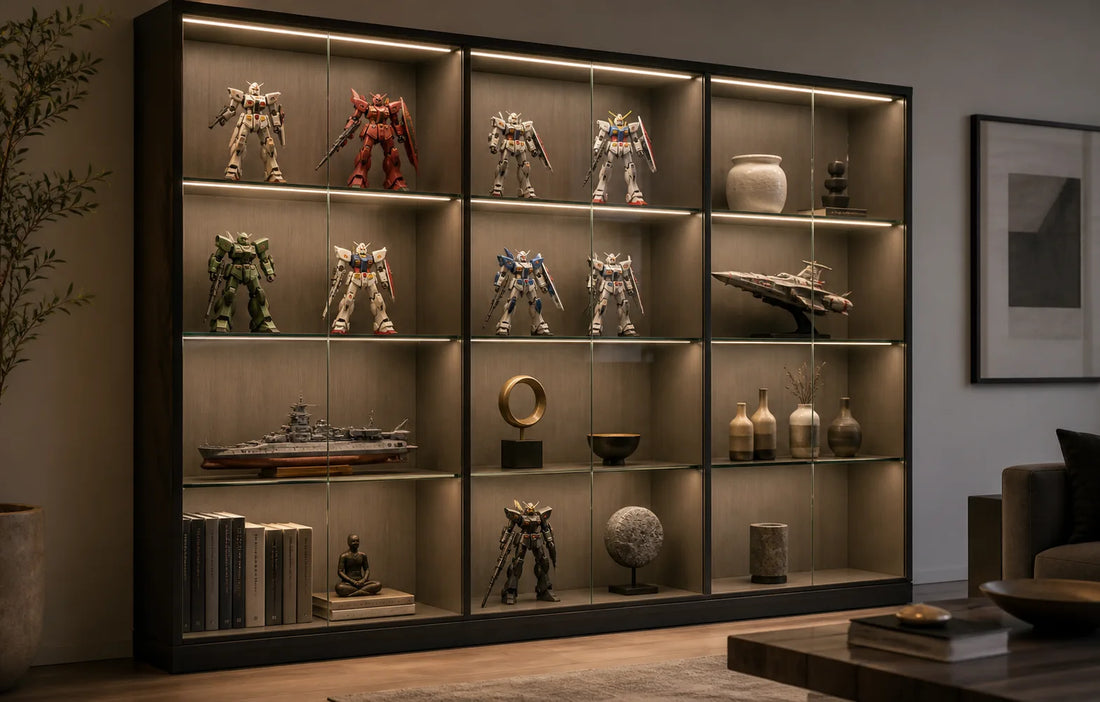

Glass Display Cabinet & Collectibles Lighting Without Hotspots
Best Overall for a Permanent, Color-Critical Collectibles Cabinet
Best overall for a powered glass display cabinet where model colors and an even shelf-to-shelf result matter: one concealed run of Lumaz 12V High Density COB LED Strip Light per shadow-producing shelf. Use the CRI-above-90 strip in a compatible diffusing profile or behind an opaque shelf lip, place it near the upper front of each compartment, and aim the light inward before setting brightness. The continuous 320-LED/m source reduces individual light points, while per-shelf placement prevents upper collectibles and shelf edges from leaving lower levels dim.
Best fit
- A permanent model, game, watch, or art display with several shelf levels.
- A concealed route to power and a separately planned compatible 12V control system are available.
- Accurate-looking collectible colors matter more than the fastest installation.
Choose differently when
- You want an adapter, hidden control, and several strip runs in one starting kit; use the Lumaz Through-Wood Touch Sensor COB kit.
- No cable route is acceptable; give priority shelves independent rechargeable Lumaz light bars.
- Several separate objects or cubbies need individual pools of light without hardwiring; use rechargeable Lumaz pucks and mock-test them for glass reflections.
Lumaz solution principle: solve glass-cabinet lighting in this order: block the direct view of the source, give every shadow-producing shelf its own light, then match color temperature and brightness across levels. A top light is sufficient only when clear shelves, sparse objects, and the cabinet depth allow light to reach the bottom during an actual closed-door test.
Choose by Shelf Shadow, Power, and Display Goal
| Cabinet condition | Recommended solution | Placement and power plan | Choose differently when |
|---|---|---|---|
| Several occupied levels; collectible colors must look natural | High-CRI COB on every shadow-producing shelf | Conceal each source near the upper front, aim inward, and return the runs to a designed 12V system. | A complete adapter-and-control kit is more important than a published CRI above 90. |
| Wood-framed multi-shelf cabinet with a hidden route to one accessible hub | Cut-to-fit multi-strip COB kit | Use one measured strip per level and route supported leads to the centralized adapter and hidden touch control. | The display requires a published high-CRI light source or a custom connection design. |
| Finished or rental cabinet with no acceptable vertical cable | Independent rechargeable slim bars | Mount one removable bar on each priority shelf and use the same color setting and brightness across adjacent levels. | Many shelves remain illuminated for hours and repeated charging would become the main problem. |
| Several hero models, sculptures, or separate cubbies need individual emphasis | Rechargeable puck set for separate focal points | Hide one magnetic puck above each selected focal point, then use the remote or touch control to set brightness without hardwiring the cabinet. | The goal is an even wash across several objects or a full shelf. |
| Clear glass shelves with a sparse display and no solid dividers | Mock-test one concealed top COB line first | Use temporary mounting at normal brightness and check every level from standing and seated views. | Objects, shelf edges, or cabinet depth create visible lower-level shadows; switch to per-shelf light. |
Four Configurations That Produce Different Display Results
Configuration 1 · Permanent color-critical display
Use a Concealed High-CRI COB Run on Every Lit Level
Recommended setup: install one measured white-light COB run above each occupied compartment, concealed by a shelf lip or a compatible diffusing profile. Begin near the upper front and aim inward so the light reaches faces and front details without presenting a bright line directly to the viewer or glass door. Specify the compatible power supply, dimmer, connectors, cable, and shelf-run topology before cutting.
- Best fit: permanent glass cabinets where several levels need smooth white light and the installer can design the complete 12V system.
- Strip facts: 320 LEDs/m, CRI above 90, 3000K/4000K/6000K choices, 1m to 20m lengths, cuttable and dimmable construction.
- Why this model: high-density COB reduces individual light points, while CRI above 90 supports more natural-looking paint, print, fabric, and model colors.
Best fit
A collector is lighting painted figures across four fixed levels and can conceal low-voltage leads along a rear corner or frame. The cabinet is used as a long-duration display rather than only for brief access.
Not ideal when
You expect a ready-to-plug-in kit. This Lumaz product includes the 2-pin strip but no power supply or dimmer; choose the Through-Wood Touch Sensor COB kit when a more complete starting system is the priority.
- Measure the illuminated width of every compartment separately; do not assume all shelf openings match.
- Choose one white color temperature for the full cabinet. Use 4000K as a neutral mock-up starting point when neither a distinctly warm nor cool presentation is intended.
- Dry-fit the strip and compatible diffusion or shielding before exposing adhesive. Close the glass door and inspect the source from every normal viewing height.
- Design the complete compatible 12V power and control system, calculate the total load, and confirm the connection method before cutting any run.
Configuration 2 · Coordinated multi-shelf kit
Choose a Complete COB Kit When One Hidden Control Should Run Several Levels
Recommended setup: use one cut-to-fit COB strip beneath the shelf above each display level, return the supported runs to the centralized hub, and place the adapter in an accessible base or side compartment. Conceal the touch sensor behind a compatible non-metallic panel and set brightness only after the cabinet is fully dressed.
- Best fit: a powered wood-framed display with two to six lit levels and one accessible location for the hub and adapter.
- Kit facts: 2-, 4-, 5-, and 6-strip choices; 1m, 2m, 3m, and 5m lengths; 320 LEDs/m; 2.5cm cut intervals; stepless dimming.
- Why this model: the centralized kit reduces the need to assemble separate controls, while dense COB and cut-to-fit sections support a cleaner, more consistent line on unequal shelves.
Best fit
A wood-and-glass cabinet can hide a vertical lead lane and the owner wants several shelves to switch and dim together from one concealed control point.
Not ideal when
A published CRI above 90 is a firm requirement, or the furniture cannot accept a concealed lead route. Choose the high-CRI 12V Lumaz strip for a designed system, or rechargeable Lumaz bars when each level must remain independent.
Confirm the connection layout before cutting: kit quantity and total strip length do not by themselves prove that every supplied lead reaches every shelf. Lay out the hub, control, leads, and measured shelf runs in order before mounting them inside the cabinet.
Configuration 3 · No outlet or hidden cable route
Make Priority Shelves Independent Rechargeable Zones
Recommended setup: mount one Lumaz rechargeable magnetic light bar near the upper front of each priority compartment, but keep the luminous face out of direct view through the glass. Select the same color temperature across the display, use always-on mode during intentional display sessions, and leave a clear removal path for charging.
- Best fit: a finished cabinet, rental display, or one to three important shelves where drilling and visible vertical cable are unacceptable.
- Fixture facts: 10cm to 50cm lengths; black or silver; 3000K, 4000K, or 6000K; stepless dimming; magnetic installation.
- Why this model: the linear form spreads light across more of a shelf than one focal puck, while each bar can be removed and adjusted without connecting adjacent levels.
Best fit
A collector occasionally lights two shelves for evening viewing and wants to preserve the cabinet without pass-through holes or permanent low-voltage cable.
Not ideal when
Four or more levels stay illuminated for hours every day. Charging several bars separately will become part of the display routine; use a powered Lumaz COB system when a concealed route can be created.
- Start with the shelves that hold the most important or darkest objects rather than automatically adding a bar to every level.
- Temporarily mount each bar and reduce brightness until its reflection stops competing with the collectibles.
- Confirm the bar can detach from its magnetic mount after the display is arranged.
- Use the same color setting on adjacent shelves and create one charging location for the complete set.
Configuration 4 · Separate objects or display cubbies
Use a Puck Only When a Controlled Pool of Light Is the Goal
Recommended setup: place one rechargeable magnetic puck above each selected hero object or inside each separate cubby, concealed behind the upper frame. Use the white-light setting and a lower brightness level for normal collectible viewing; reserve RGB colors for intentional mood effects. Keep every puck removable for charging, and use the 15-, 30-, or 60-minute timer when the display should switch off automatically. Do not repeat exposed pucks across every glass shelf when the desired result is one even wall of light.
- Best fit: two to six sculptures, models, display stands, or separate cubbies that need individual pools of light without a concealed power route.
- Fixture facts: six rechargeable 1W pucks with magnetic and adhesive mounting, remote and touch control, five brightness levels, nine RGB colors, and 15/30/60-minute timers.
- Why this model: each puck creates an independent cordless focal point, while removable magnetic mounting simplifies charging and brightness control helps reduce reflected pools in the glass.
Best fit
Several objects sit in separate compartments and each benefits from a deliberate brighter center. The six-pack format is especially useful when the focal points are distributed across the cabinet without a practical cable route.
Not ideal when
Several models share one shelf, accurate color rendering is the priority, the puck or its reflection remains visible, or the center becomes much brighter than the shelf ends. Choose the CRI-above-90 Lumaz COB strip for color-critical displays or a linear rechargeable bar for wider cordless coverage.
Run the Closed-Door Reflection Test Before Permanent Mounting
- Dress the cabinet first. Put the largest, glossiest, and lightest-colored collectibles in their intended positions because they change shadows and reflected brightness.
- Mock up the source. Use removable tape or temporary clips to compare the upper front, center, and rear positions. Keep the source concealed at normal standing eye level.
- Close every glass door. Check from straight on, both sides, standing height, and any common seated viewpoint. A position that looks clean with the door open may produce a bright duplicate line when closed.
- Lower brightness before moving the fixture. Many apparent hotspots are caused by excessive contrast. Dim to the lowest level that still reveals faces, labels, and surface detail.
- Compare top-only with per-shelf light. Keep top-only lighting only if the bottom level remains useful and objects do not cast distracting shadows through the glass shelves.
- Mark the winning position. Confirm cable reach, charging removal, door clearance, and service access before exposing adhesive or drilling pass-throughs.
Front, center, or rear? Upper-front placement is the strongest starting point for illuminating object faces, but it needs shielding to prevent a reflected bright line. Rear placement can create silhouettes and over-light the back panel. Center placement is a useful compromise only after the door reflection and object shadows have been checked in the actual cabinet.
Questions That Determine Your Lighting Setup
Which light should I use when collectible color accuracy matters?
Use the Lumaz 12V High Density COB LED Strip when accurate-looking paint, print, fabric, or natural materials are a firm requirement because it publishes CRI above 90. Use the complete COB kit or rechargeable products when easier installation matters more, but do not infer color accuracy from color temperature alone.
Which color temperature should every shelf use?
Choose one white point for the whole cabinet before permanent mounting. Warm white can complement wood and vintage objects, 4000K is a practical neutral starting point for a mixed collection, and cool white can emphasize crisp modern finishes. Alternating temperatures by shelf usually makes a coordinated display look accidental.
How do I correct one shelf that looks brighter than the others?
Match the front-to-back source position first, then apply diffusion or shielding consistently and dim the brighter level. A shallow top shelf can look stronger than a deep lower shelf even with identical sources; divide shelves into compatible controllable groups only when placement and shielding cannot produce the required balance.
Can one top light replace a light on every shelf?
Only when clear glass shelves, sparse objects, and cabinet depth allow useful light to reach the lowest level with the doors closed. If objects or shelf edges create visible lower-level shadows, install one Lumaz COB run or linear bar on each shadow-producing shelf instead.
